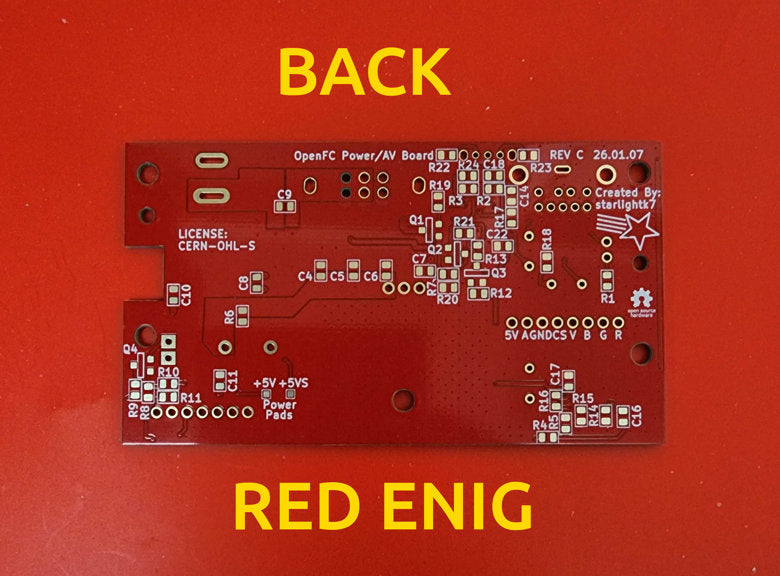

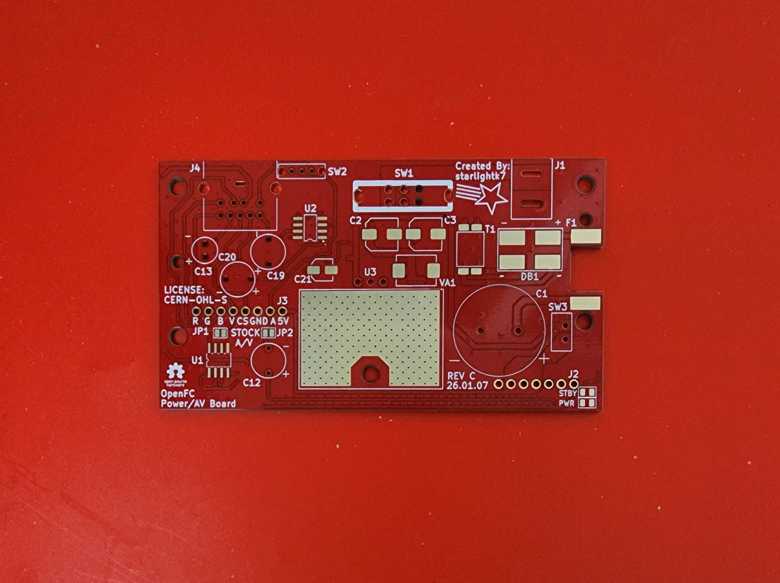

OpenFC Power/AV Board

This is a mod board for providing composite video and improved power and audio for use with the HVC model Famicom. It can also be used with a GPM famicom, but there is slight overlap with the mainboard due to being sized for HVC. Please see the design page in the documentation for what to expect from this board.

This board is an original design which backports an SFC-style power and audio circuit with a THS7314 for composite output. When used with OpenFC mainboard, it can largely eliminate jailbars. For stock, it can be a drop in upgrade, but some jailbars will be present (midpoint between RF and elimination). You can also attach bypass mods or NESRGB to the bypass pads. For more details of what to expect, please see the documentation.

If you would like to see available schematics and board-views, please check the source repository here: github.com/starlightk7/OpenFC

The product documentation can be found here: starlightk7.github.io/OpenFC

Join the discussion on Discord here: discord.gg/DjXvPDA6Vv

Please note: This is a very advanced project. Significant skill in soldering and desoldering is required a long with appropriate tools. Please review the documentation and/or install video carefully before purchasing to understand the project requirements. You will need to purchase a compatible donor unit, and optionally, any parts you wish to use new separately. There is no guarantee that you can make a successful build simply by purchasing this product.
